Fully Automated Analyser with Unrivalled Performance
Precision, Reliability & Accuracy

Why Choose the RX daytona+?

• World leading extensive test menu covering routine chemistries, specific proteins, lipids, antioxidants, cardiac and diabetes testing, offering cost savings through consolidation of routine and novel tests on a single platform
• Integrated barcode readers for reagent and sample identification. Increased functionality with 12 wavelengths generated via diffraction grating (340-800nm) ensuring a multitude of chemistries are possible on one system
• Separate sample and reagent pipettes minimise carryover. Dedicated micropipettes are equipped with liquid level sensors and crash detection. Dual five speed stirrers provide optimised mixing for each assay
• Economic platform with low water consumption of only 5 litres per hour saving on consumable costs. The RX daytona+ also requires minimal maintenance
• Easy to use icon based and advanced software with an on-board inventory management system providing unrivalled up-time and  performance with sensitive clot detection sensors and on-board cuvette checking function
• Advanced software with unrivalled QC capabilities developed to improve laboratory efficiencies with the ability to generate Levey-Jennings charts, calibration curves and the ability to provide QC statistics and results. There are also 7 different calibration options available

Comprising the RX series world leading test menu, the RX daytona+ performs a wide range of niche and specialised routine chemistries, specific proteins, lipids, therapeutic drugs, antioxidants, diabetes and veterinary testing. The RX daytona+ also has testing Direct HbA1c testing capabilities eliminating sample pre-dilution and ultimately saving time in the laboratory. The RX daytona+ has the capability of analysing a variety of sample types including Serum, Plasma and Urine.

The RX daytona+ is a fully automated, random access platform delivering a high level of precision, accuracy and reliability with the ability to perform emergency STAT sampling. The most versatile analyser in its class, the RX daytona+ is capable of performing 270 photometric tests per hour and up to 450 with ISE testing.

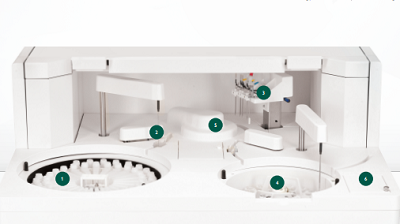

System Overview

• Cuvettes
  The system comprises 72 semi-permanent reaction cuvettes lasting for 3-6 months with an economical reaction volume of between 100-350?l. The on-board cuvette checking function ensures only clean and viable reaction vessels are used.
• Sample Carousel
  50 positions are contained within the universal sample carousel, including 10 positions for calibrators and controls. The emergency loading port allows for the processing of STAT samples. Barcode sample identification ensures accurate matching of patient identification to specimen.
• Wash Station
  A thorough 12 stage washing process with acid, alkali and pure water wash steps eliminates contamination and carryover. Liquid level sensors at stations 1-5 prevent cuvette overflows.
• Mixing System
  Equipped with dual 5 speed stirrers, operators can choose the correct mixing speed depending upon the viscosity of the reagent, therefore optimising the mixing of each assay to ensure best performance.
