Rapid, Comprehensive Clinical Chemistry Testing
Precision, Reliability & Accuracy

Why Choose the RX imola?

• World leading extensive test menu covering routine chemistries, specific proteins, lipids, antioxidants, cardiac and diabetes testing, offering cost savings through consolidation of routine and novel tests on a single platform
• Integrated barcode readers for reagent and sample identification. Increased functionality with 12 wavelengths generated via diffraction grating (340-800nm) ensuring a multitude of chemistries are possible on one system
• Separate sample and reagent pipettes minimise carryover. Dedicated micropipettes are equipped with liquid level sensors, clot and crash detection. Dual five speed stirrers provide optimised mixing for each assay. Minimum reaction volume of 150µl with a sample volume of just 2-35ul required
• Economic platform with low water consumption of only 18 litres per hour. The RX imola also features 90 on-board permanent pyrex cuvettes saving on consumable costs

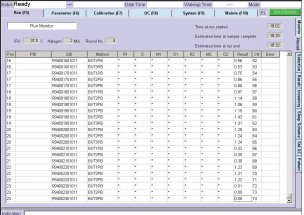

• Easy to use icon based and advanced software with an on-board inventory management system providing unrivalled performance with sensitive clot detection sensors and on-board cuvette checking function
• Advanced software with unrivalled QC capabilities developed to improve laboratory efficiencies with the ability to generate Levey-Jennings charts, calibration curves and the ability to provide QC statistics and results. There are also 6 different calibration options available

The RX imola comprises the RX series world leading test menu covering routine chemistries, specific proteins, lipids, therapeutic drugs, antioxidants, diabetes and veterinary testing. Leading the way, the RX imola has testing capabilities for a wide range of our high performing and unique assays including Direct HbA1c. Capable of analysing a variety of sample types including Serum, Plasma and Urine.

Delivering consistent high quality results, the RX imola is ideal for medium to high throughput laboratories and is capable of performing 400 photometric tests and 560 tests per hour including ISE. The RX imola excels in performance and functionality to provide rapid, comprehensive testing with minimal maintenance required.

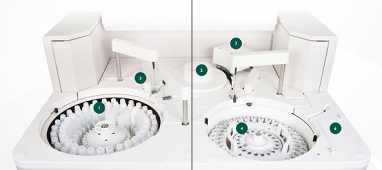

System Overview

• Reagent Carousel
  60 cooled reagent positions ensuring reagents can be stored on-board the analyser without compromising reagent stability.
• Wash Station
  The RX imola provides an 8 stage washing system that includes acid, alkali and pure water wash steps. Cuvettes have a curved inner surface to aid efficient cleaning and drying.
• Sample Carousel
  Removable sample carousel with 72 positions for samples and 20 cooled positions for controls and calibrators. Immediate sample interruption function for analysing emergency samples via a removable panel. Samples are identified easily through an on-board barcode scanner.
• Pipette
  Dual micro-pipettes include liquid level sensors and clot/bubble detection. Dual 5 speed stirrers are optimised for each assay to ensure the best performance with highly accurate results.
