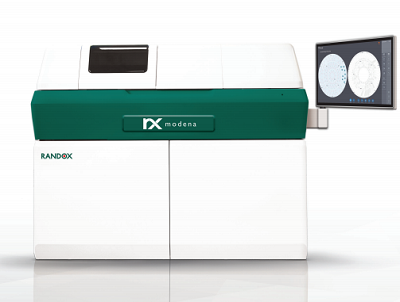

Superior High Throughput, Fully Automated Analyser
Precision, Reliability & Accuracy

Why Choose the RX modena?

• World leading extensive test menu covering routine chemistries, specific proteins, lipids, antioxidants, cardiac, diabetes and veterinary testing, offering cost savings through consolidation of routine and novel tests on a single platform
• Interactive touch-screen technology with integrated barcode readers for reagent and sample identification. Increased functionality with 13 wavelengths generated via diffraction grating (340-800nm) ensuring a multitude of chemistries are possible on one system
• Dedicated reagent and sample pipettes to minimise the risk of errors and contamination. The RX modena also features a continuous loading hatch to allow for samples to be analysed quickly and easily during a run
• Economic platform with low water consumption of less than 20 litres per hour saving on consumable costs. The RX modena also requires less than 5 minutes minimal maintenance

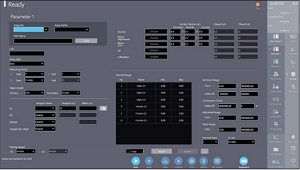

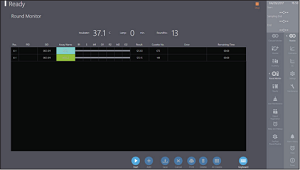

• Easy to use advanced Microsoft 10 software with a built-in Inventory management system calculating the number of tests remaining, providing alerts of shortages and expired reagents and calibrators. The RX modena also features automatic test re-run function and sample dilution
• Advanced QC capabilities with daily, monthly and batch QC with data archiving, Levey-Jennings charts and automatic QC and calibration.  There are also 7 different calibration options available

The RX modena utilises the RX series ever expanding, unrivalled test menu covering routine and specialised chemistries, specific proteins, lipids, therapeutic drugs, antioxidants, diabetes and veterinary testing. Leading the way, the RX modena has an on-board haemolysis function for Direct HbA1c Testing. The RX modena provides laboratories with superior performance offering advanced methodologies with excellent correlation to the gold standard with excellent reagent CV ranges.

Bringing a new era to clinical chemistry testing, the RX modena is capable of performing 800 photometric and a total of 1,200 tests per hour including ISE. Delivering in high quality performance, the RX modena presents a new class of efficiency without compromising on the precision, reliability and accuracy that the RX series is renowned for.

System Overview

• Reaction System
  153 semi-permanent cuvettes onboard with cuvette check function ensuring only clean and viable reaction vessels are reused. Separate sample and reagent pipettes to minimise carryover.
• Sample Carousel
  Removable sample carousel with 94 positions for samples, and 10 positions for controls and calibrators. Sample pipette equipped with bubble detection and 3 levels of clot detection.
• Reagent Carousel
  Reagent carousel with 100 cooled positions. Dedicated twin reagent micropipette & dedicated sample pipette both equipped with liquid level sensors and crash detection. Automatic barcode reagent identification.
• Continuous Loading Hatch
  Continuous loading is facilitated through a hatch on the analyser. The sample carousel is made up of removable baskets. The software will detect a free space for the user to insert the basket allowing samples to be added quickly and easily during a run, enhancing productivity in the laboratory.
