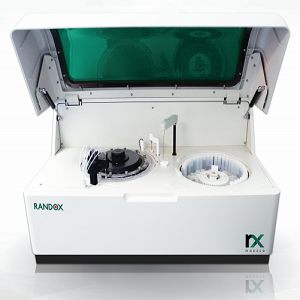

A Compact Fully Automated Solution
Precision, Reliability & Accuracy

Why Choose the RX monaco?

World leading extensive test menu covering routine chemistries, specific proteins, lipids, antioxidants, diabetes and veterinary testing. The RX monaco is capable of performing 170 photometric tests per hour
Integrated barcode readers for reagent and sample identification and cuvette check function to ensure only clean and viable reaction vessels are used
Cost savings through consolidation of routine and novel tests on a single platform with an on-board inventory management system
Capable of analysing a variety of sample types including: Serum, Plasma, Urine, Supernatants and CSF with a sample volume of just 3-35µl (0.1µl increments) required

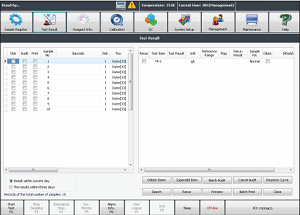

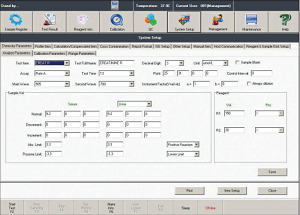

Easy to use icon based software with online guide to maintenance and reporting of QC data, calibration curves & Levey-Jennings charts
The ultimate in flexibility, the RX monaco is available as a bench top or floor standing model, with user defined QC multi point rules, calibration options and 3 levels of password protection

The RX monaco comprises an extensive test menu covering routine chemistries, specific proteins, lipids, antioxidants, diabetes and veterinary testing with emergency and STAT sampling. The RX monaco is ideal for low to mid volume clinical chemistry testing consolidating routine and specialised testing onto one efficient and easy to use platform.

Offering the ultimate in convenience, performance and confidence, the RX monaco is capable of performing 170 photometric tests per hour. The RX monaco combines robust hardware and intuitive software offering customers choice to suit their unique circumstances, where they can choose between a benchtop or floor standing system.


System Overview

• Wash Station
  A 12 stage washing system including acid, alkali, and pure water wash steps cleans the 120 reusable cuvettes. The independent stirring system is automatically rinsed with purified water to reduce carryover.
• Reagent & Sample Carousel
  The shared reagent & sample carousel comprises 66 user defined positions and is cooled ensuring reagent, controls and calibrators can be stored on-board the analyser without compromising stability.
• Reaction Carousel
  The reaction system comprises 120 semi-permanent cuvettes with a 3-6 month lifespan helping to reduce costs. A inbuilt water bath controls the temperature of the cuvettes to ensure they are being used at optimum temperature. The RX monaco has a cycle time of 15 seconds.
• Reagent & Sample Pipette
  Single reagent and sample pipette with liquid level detection and collision protection. Rinsed inside and outside (warm water rinising)
