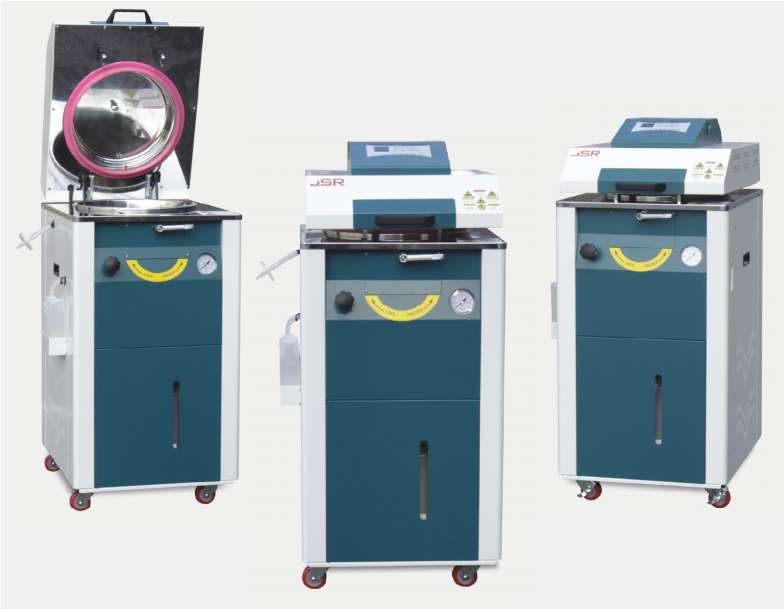

JSAT-Series Autoclave is an innovative replacement of conventional laboratory autoclave by providing reliable performance,
Up-to-dated design and safety door inter-lock system integrated with temperature and pressure for perfect user safety.
Our JSAT-Series Autoclave range
|
Art No.
|
|||||
|
Chamber Volume
|
45 L
|
65 L
|
85 L
|
105 L
|
|
|
Dimensions
|
Inner
|
∅350 x H490
|
∅350 x H680
|
∅450 x H535
|
∅450 x H665
|
|
Dia. x H mm
|
Usable
|
∅350 x H410
|
∅350 x H620
|
∅450 x H480
|
∅450 x H610
|
|
W x D x H mm
|
Outer
|
555 x 670 x 955
|
555 x 670 x 1105
|
655 x 780 x 1010
|
655 x 780 x 1110
|
|
|
Basket
|
∅330 x H195
|
∅330 x H280
|
∅430 x H220
|
∅430 x H270
|
|
Temperature Range
|
Up to 123 oC
|
||||
|
Accuracy at 121 oC
|
± 0.5 oC
|
||||
|
Uniformity at 121 oC
|
± 2.0 oC
|
||||
|
No. of Service Basket
|
2
|
||||
|
Heater Capacity
|
2.0 kW
|
3.0 kW
|
4.0 kW
|
5.0 kW
|
|
|
Power Rating
|
9.2 Amp
|
13.7 Amp
|
18.2 Amp
|
22.8 Amp
|
|
|
Electrical Requirements
|
220 VAC 50/60Hz 1 Phase
|
||||
|
Power Plug
|
CEE 7/7 Schuko
|
30 AMP
|
|||
