Global Quality Trading

JS Research

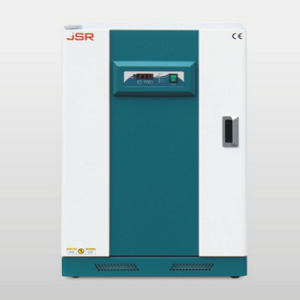

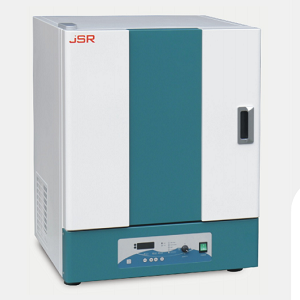

General Incubator

JSGI-Series General Incubator is ideal for bacterial, fungal, cell and tissue culture incubation temperature range from ambient + 5°C to 70°C. Coaxial fan mildly circulates air within the chamber to maintain thermal uniformity of incubator.

Models

Art No.		JSGI-050T	JSGI-100T	JSGI-150T	JSGI-250T	JSGI-250DT
Chamber Volume		48 L	96 L	150 L	250 L	250 L x 2
Dimensions	Inner	400 x 300 x 400	400 x 400 x 600	500 x 500 x 600	500 x 500 x 1000	500 x 500 x 1000
W x D x H mm	Outer	580 x 535 x 720	580 x 635 x 920	680 x 735 x 920	680 x 735 x 1320	1365 x 735 x 1400
Temperature Range		ambient+5°C to 70°C
Accuracy at 37.0°C		± 0.2°C	± 0.2°C	± 0.2°C	± 0.3°C	± 0.3°C
Uniformity at 37.0°C		± 0.5°C	± 0.5°C	± 1.0°C	± 1.5°C	± 1.5°C
Heat up time to 37.0°C		15 min.	15 min.	15 min.	20 min.	25 min.
Number of shelves/Max.		2 / 20	2 / 20	2 / 20	3 / 25	6 / 25
No. of Access Port		1	1	1	1	2
Heater Capacity		150 W	200 W	250 W	400 W	2 x 400 W
Power Rating		0.7 Amp	1.0 Amp	1.2 Amp	2.0 Amp	2 x 2.0 Amp
Power Plug		CEE 7/7 Schuko European Standard or BS 1363 British Plug

Visit website Download Brouchure

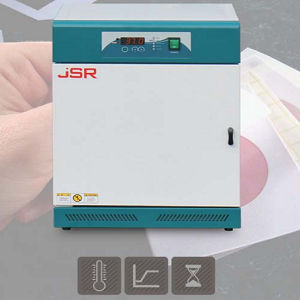

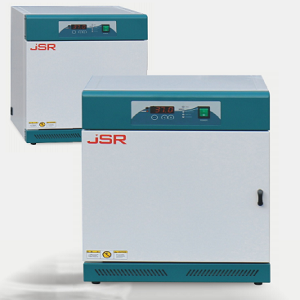

Compact Incubator

JSGI-Series Compact Economic Incubator is suitable for personal, small food laboratory or HACCP Industry doing daily incubation of bacterial screening with Petri-Dish or Petri-Film.

Models

Art No.		JSGI-10T	JSGI-30T
Chamber Volume (Capacity)		9.3 L	31.5 L
Dimensions	Inner	210 x 210 x 210	300 x 300 x 350
W x D x H mm	Outer	315 x 370 x 435	425 x 260 x 590
Temperature Range		Ambient +5 ^oC to 50^oC
Accuracy at 37.0^oC		± 0.2^oC	± 0.2^oC
Uniformity at 37.0^oC		± 0.5^oC	± 0.5^oC
Number of shelves / Max. No.		2 / 2	2 / 2
Heater Capacity		60 W	100 W
Power Rating		0.3 Amp	0.5 Amp
Power Plug		CEE 7/7 Schuko European Standard or BS 1363 British Plug

Visit website Download Brouchure

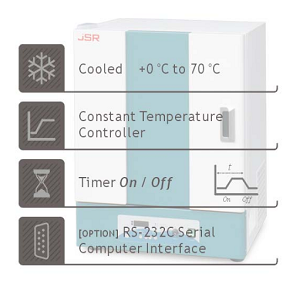

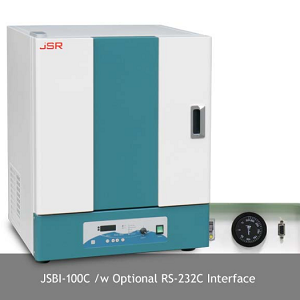

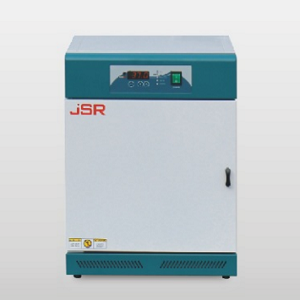

Tabletop Refrigerated Incubator

Table Top Refrigerated Incubator gives excellent incubation conditions below ambient temperature within a compact size for bacterial, fungal, cell and tissue culture incubation temperature range from +0°C to 70°C.

Models

Art No.		JSBI-050C	JSBI-100C
Chamber Volume (Capacity)		50 L	100 L
Dimensions	Inner	400 x 360 x 350	450 x 450 x 500
W x D x H mm	Outer	580 x 600 x 770	630 x 690 x 920
Temperature Range		+0°C to 70°C
Accuracy at 20.0°C		± 0.2°C
Uniformity at 20.0°C		± 0.5°C
Number of shelves/Max.		2 / 10	2 / 16
Heater Capacity		500 W	700 W
Refrigeration System		CFC-Free Air Cooled Hermetically Sealed Compressor
Power Rating		5.5 Amp	6.0 Amp
Power Plug		CEE 7/7 Schuko European Standard or BS 1363 British Plug

Visit website Download Brouchure

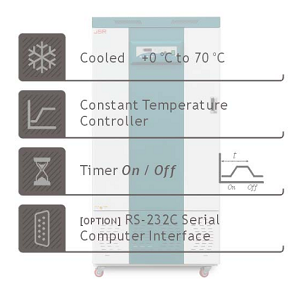

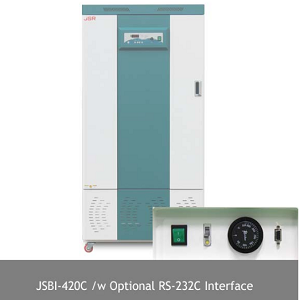

Refrigerated Low Temperature BOD Incubator

JSBI-C Series Refrigerated BOD Incubator gives excellent incubation conditions below ambient temperature for bacterial, fungal, cell and tissue culture incubation temperature range from 0°C to 70°C or BOD (Biological Oxygen Demand) test, QA or QC laboratory in pharmaceutical industries.

Models

Art No.		JSBI-150C	JSBI-250C	JSBI-420C	JSBI-840C
Chamber Volume		150 L	250 L	420 L	840 L
Dimensions	Inner	500 x 500 x 600	500 x 500 x 1000	700 x 600 x 1000	1400 x 600 x 1000
W x D x H mm	Outer	680 x 825 x 1370	680 x 825 x 1770	880 x 925 x 1770	1580 x 925 x 1770
Temperature Range		+ 0°C to 70°C
Accuracy at 20.0°C		± 0.2°C	± 0.2°C	± 0.2°C	± 0.2°C
Uniformity at 20.0°C		± 0.5°C	± 0.5°C	± 0.5°C	± 1.0°C
Number of shelves/Max.		2 / 20	3 / 36	3 / 36	6 / 36
Heater Capacity		900 W	1.0 kW	1.5 kW	2 x 1.5 kW
Refrigeration System		CFC-Free Air Cooled Hermetically Sealed Compressor
Power Rating		7.1 Amp	7.6 Amp	10.3 Amp	22.0 Amp
Power Plug		CEE 7/7 Schuko European Standard or BS 1363 British Plug

Visit website Download Brouchure

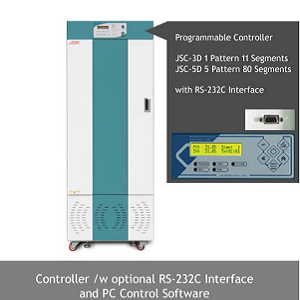

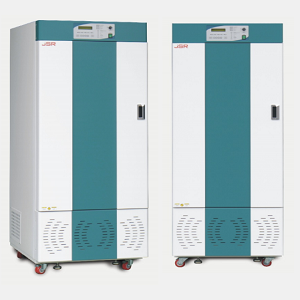

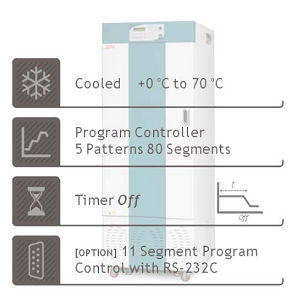

Programmable Refrigerated Low Temp. B.O.D. Incubator

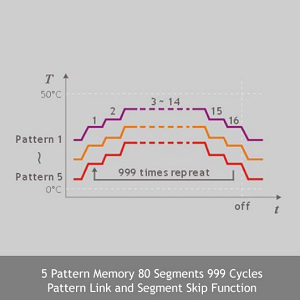

JSBI-CP Series Programmable Refrigerated BOD Incubator gives excellent incubation conditions below ambient temperature for bacterial, fungal, cell and tissue culture incubation with temperature vs time programming up to 5 patterns internal memory and 80 temperature segments range from 0°C to 70°C.

Models

Art No.		JSBI-150CP	JSBI-250CP	JSBI-420CP
Chamber Volume		150 L	250 L	420 L
Dimensions	Inner	500 x 500 x 600	500 x 500 x 1000	700 x 600 x 1000
W x D x H mm	Outer	680 x 810 x 1430	680 x 810 x 1830	880 x 910 x 1830
Temperature Range		+0°C to 70°C
Accuracy at 20.0°C		± 0.2°C
Uniformity at 20.0°C		± 0.5°C
Number of shelves/Max.		2 / 20	3 / 25	3 / 25
Heater Capacity		900 W	1.0 kW	1.5 kW
Refrigeration System		CFC-Free Air Cooled Hermetically Sealed Compressor
Power Rating		7.1 Amp	7.6 Amp	10.3 Amp
Power Plug		CEE 7/7 Schuko European Standard or BS 1363 British Plug

Visit website Download Brouchure

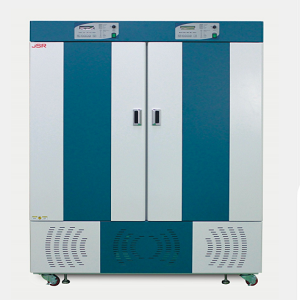

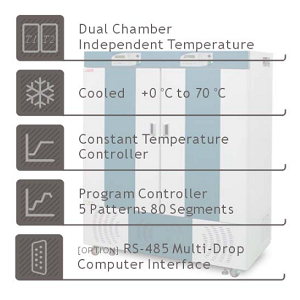

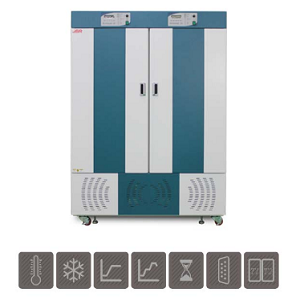

Two x 250L Dual Chamber Refrigerated Incubator

Dual Chamber Refrigerated BOD Incubator provides large capacity volume and independent temperature control to treat large number of samples in various incubation conditions below ambient temperature for bacterial, fungal, cell and tissue culture incubation temperature range from 0°C to 70°C or BOD (Biological Oxygen Demand) test, QA or QC laboratory in pharmaceutical industries.

Models

Art No.		JSBI-250DC	JSBI-250DCP
Chamber Volume		250 L x 2 Chamber 2 Door
Dimensions	Inner	500 x 500 x 1000
W x D x H mm	Outer	1365 x 825 x 1760	1365 x 810 x 1830
Temperature Controller		JSC-1D Digital PID Controller	JSC-5D Programmable Controller
Range		+0°C to 70°C
Accuracy at 20.0°C		± 0.2°C	± 0.2°C
Uniformity at 20.0°C		± 0.5°C	± 0.5°C
Number of shelves/Max.		3 / 36 per chamber
Heater Capacity		1.0 kW x 2 ea
Refrigeration System		CFC-Free Air Cooled Hermetically Sealed Compressor
Power Rating		15.0 Amp
Power Plug		CEE 7/7 Schuko European Standard or BS 1363 British Plug

Visit website Download Brouchure

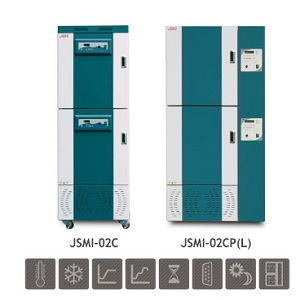

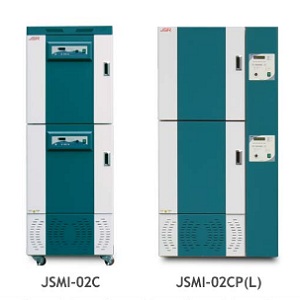

Two x 125L Multi-Room Refrigerated Incubator

JSMI-02CP(L) Series Multi-Room Programmable Refrigerated Incubator equipped with 5 Pattern internal memory, 80 segments and light control for photoperiodic day-night simulation program capability provides various incubation and test condition needs temperature vs time vs light programming.

Models

Art No.		JSMI-02C	JSMI-02CP	JSMI-02CPL
Chamber Volume		125 L x 2 Chamber 2 Door
Dimensions	Inner	500 x 500 x 500 / chamber
W x D x H mm	Outer	680 x 825 x 1950	935 x 810 x 1875	935 x 835 x 1875
Temperature Controller		JSC-1D Digital PID	JSC-5D Controller
Range		+0°C to 70°C
Accuracy at 20.0°C		± 0.2°C
Uniformity at 20.0°C		± 0.5°C
Light Control		none	none	2 x 32 Watt Fluorescent
Number of shelves/Max.		2 / 16 per chamber
Heater Capacity		2 x 900 W
Refrigeration System		CFC-Free Air Cooled Hermetically Sealed Compressor
Power Rating		14.1 Amp	14.1 Amp	14.7 Amp
Power Plug		CEE 7/7 Schuko European Standard or BS 1363 British Plug

Visit website Download Brouchure

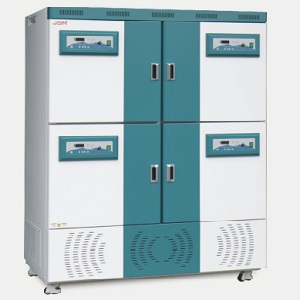

Four x 125L Multi-Room Incubator

JSMI-04T(C) Series Multi-Room Refrigerated Incubator provides 4 chambers in a compact unit share less footprint. Temperature of each chamber can be controlled independently which allow to process incubation at different temperature condition at the same time to save incubation time and cost. Useful for bacteria incubation or comparison test of samples such as food packaging at different temperature condition.

Models

Art No.		JSMI-04T	JSMI-04C
Chamber Volume		125 L x 4 Chamber 4 Doors
Dimensions	Inner	500 x 500 x 500 / chamber
W x D x H mm	Outer	1365 x 830 x 1815
Temperature Range		ambient + 5°C to 70°C	+ 0°C to 70°C
Accuracy at 20.0°C		± 0.2°C at 37°C	± 0.2°C at 20°C
Uniformity at 20.0°C		± 0.7°C at 37°C	± 0.5°C at 20°C
Number of shelves/Max.		2 / 16 per chamber
Heater Capacity		4 x 200 W	4 x 900 W
Refrigeration System		none	CFC-Free Air Cooled Hermetically Sealed Compressor
Power Rating		2 x 2.0 Amp	2 x 14.1 Amp
Power Plug		CEE 7/7 Schuko European Standard or BS 1363 British Plug

Visit website Download Brouchure

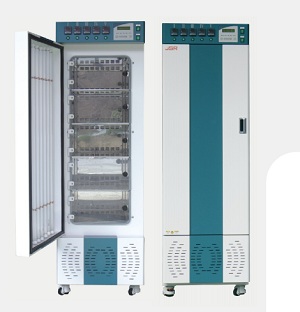

Five x 44L Multi-Room Incubator

JSMI-05CL Muti-Room Incubator has 5 incubation chambers in a unit to shares less footprint. Temperature of each chamber can be controlled independently which allows to process five different conditions of incubation at the same time to save time and cost. Useful to general incubation or comparison test of samples such as food package aging test.

Models

Art No.		JSMI-05C	JSMI-05CL
Chamber Volume		44 L x 5 Chambers / Singel Outer Door / Five Inner Glass Doors
Dimensions	Inner	400 x 500 x 220 / chamber
W x D x H mm	Outer	600 x 825 x 1920
Temperature Range		+ 5°C to 70°C
Accuracy at 20.0°C		± 0.2°C at 20°C (without light)
Uniformity at 20.0°C		± 0.5°C at 20°C (without light)
Light Control		none	2 x 32 Watt Fluorescent
Heater Capacity		5 x 400 W
Refrigeration System		CFC-Free Air Cooled Hermetically Sealed Compressor
Power Rating		15.0 Amp
Power Plug		CEE 7/7 Schuko European Standard or BS 1363 British Plug

Visit website Download Brouchure

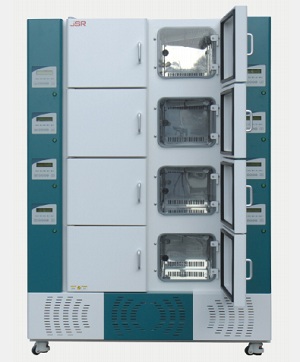

Eight x 26L Programmable Multi-Room Incubator

JSMI-08CP(L) Series Multi-Room Refrigerated Incubator provides 8 chambers in a compact unit share less footprint. Temperature of each chamber can be controlled independently which allow to process incubation at different temperature condition at the same time to save incubation time and cost. Useful for bacteria incubation or comparison test of samples such as food packaging at different temperature condition. Equipped with 5 Pattern internal memory, 80 segments and light control for photoperiodic day-night simulation program capability provides various incubation and test condition needs temperature vs time vs light programming.

Models

Art No.		JSMI-08CP	JSMI-08CPL
Chamber Volume		26 L x 8 Chambers 8 Doors
Dimensions	Inner	290 x 360 x 250 / chamber
W x D x H mm	Outer	1300 x 670 x 1870
Temperature Range		+ 5°C to 70°C
Accuracy at 20.0°C		± 0.2°C at 20°C (without light)
Uniformity at 20.0°C		± 0.5°C at 20°C (without light)
Light Control		none	1 x 10 Watt Fluorescent
Number of shelves/Max.		1 / 8 per chamber
Heater Capacity		8 x 300 W
Refrigeration System		CFC-Free Air Cooled Hermetically Sealed Compressor
Power Rating		2 x 9.1 Amp
Power Plug		CEE 7/7 Schuko European Standard or BS 1363 British Plug

Visit website Download Brouchure
