Cabinet enclosure designed Class II Type A2 provides personnel, product and environmental protection from hazardous particles such as bacteria, viruses and genetically manipulated materials such as nucleic acids that require Biosafety Level 1, 2 or 3 containments. Various applications in medical, biomedical, biotechnology, pharmaceutical, cell culture, tissue culture, virology and pathology applications using pathogens, genetic materials, carcinogens, allergens may generates hazardous airborne particles.

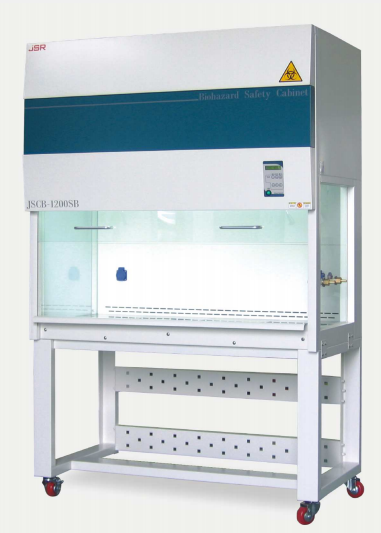

Our JSCB Series Safety Cabinet range
|
Art No.
|
|||||
|
Working Width
|
830 mm (3 ft)
|
1205 mm(4 ft)
|
1490 mm (5 ft)
|
1790 mm (6 ft)
|
|
|
Dimensions
|
Inner
|
830x526x585
|
1205x526x585
|
1490x526x585
|
1790x526x585
|
|
W x D x H mm
|
Outer
|
900x792x1990
|
1275x792x1990
|
1560x792x1990
|
1860x792x1990
|
|

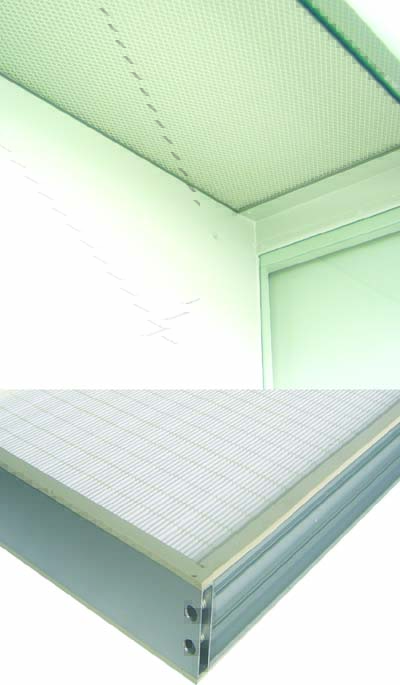

HEAP Filter
|
|
0.3 um particle removal 99.993 % ~ 99.995 %
|
|||
|
ULPA Filter
|
Option
|
0.12 um particle removal 99.999 %
|
|||
|
Air Circulation
|
70 % Recirculation / 30 % Exhaust
|
||||
|
Controller
|
Display
|
Back Light Digital LCD
|
|||
|
|
Speed Control
|
9 Step Air Velocity Control from 0.3 m/sec. ~ 0.6 m/sec.
|
|||
|
|
Control
|
FL Lamp, UV Lamp, Blower ON/OFF, UV Timer,
|
|||
|
|
|
Total Using Timer, Filter Replace
|
|||
|
Working Lamp
|
FL 20 W x 2 ea
|
FL 30 W x 2 ea
|
FL 30 W x 2 ea
|
FL 36 W x 2 ea
|
|
|
Germicidal UV Lamp
|
UV 20 W x 1 ea
|
UV 30 W x 1 ea
|
UV 30 W x 1 ea
|
UV 40 W x 1 ea
|
|
|
Utility
|

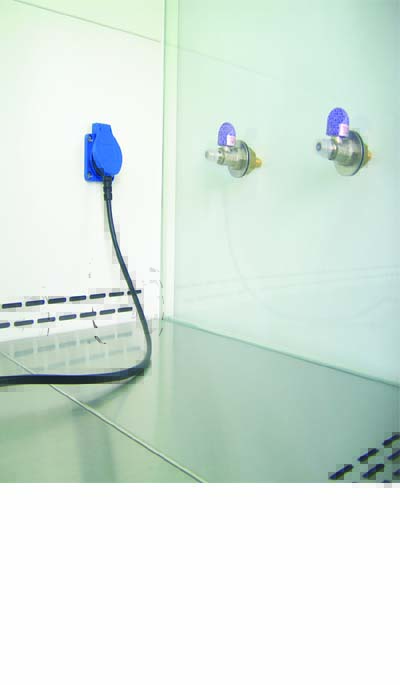

2 x Power Consent, 1 x Gas Cock, 1 x Air Cock
|
||||
|
Electric Requirement
|
220VAC 50/60Hz 1P
|
||||
|
Power Rating
|
0.9 Amp
|
1.6 Amp
|
1.6 Amp
|
1.7 Amp
|
|
|
Power Plug
|
CEE 7/7 Schuko or BS-1363
|
||||
