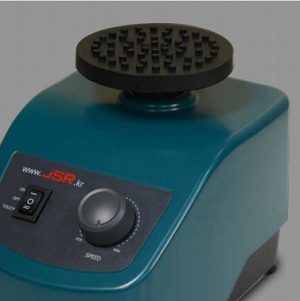

Vortex Mixer
JSVX-7R Vortex Mixer is designed to mix small vials, micro-tubes or tubes of liquid. Variable orbital speed up to max. 3,300 rpm transmitted to the liquid inside and a vortex is created and efficiently mix samples. Both Cup-Head and 3 inch Rubber Platform included to be used for various shape and size of containers.
Model
|
Art No.
|
||
|
Shaking Speed
|
Range
|
0 to 3,300 rpm
|
|
|
Motion
|
Orbital
|
|
|
Stroke
|
4 mm
|
|
Control
|
Type
|
Stepless variable speed control
|
|
|
Switch
|
Multi-Position Continuous, Touch ON, Off
|
|
|
Motor
|
Brushless Shade Motor
|
|
Max. Load & Power
|
0.5 kgs, 30 watt
|
|
|
Dimensions
|
Main Body
|
W130 x D190 x H120 mm
|
|
|
3” Platform
|
86 mm (3 inch)
|
|
|
Pop-Off Cup Head
|
50 mm
|
|
Material
|
Main Body
|
Aluminum Casting /w Powder Coating
|
|
|
3” Platform
|
Engineering plastic, rubber
|
|
|
Pop-Off Cup Head
|
Engineering plastic
|
|
Applicable Container
|
All kind of micro tubes or conical tubes
|
|
|
Safety
|
Over Current Cut-Off
|
|
|
Electrical Requirement
|
220±10% VAC 50Hz 1-Phase or 220±10% VAC 60Hz 1-Phase
|
|
|
Power Plug
|
CEE 7/7 Schuko European Standard or BS 1363 British Plug
|
|
