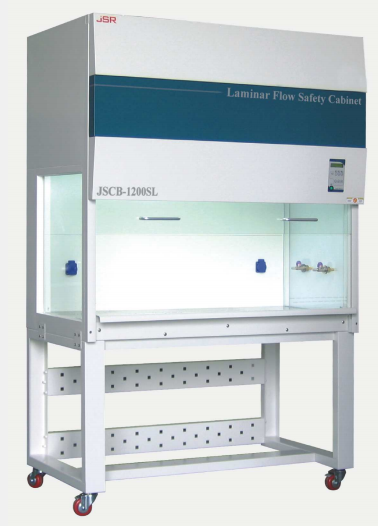

Vertical Laminar Flow Cabinet enclosure designed to maintain ISO Class 5 (formerly Class 100) clean air. HEPA filtered laminar air down flow over the work area to protect products or samples being handled in the cabinet from dust or biological contaminants such as bacteria, fungus and genetic materials. Various applications in plant tissue culture, microbial inoculation, media preparation, PCR, electronic or medical parts inspection and assembly where dust particles and contaminants should not be present in the air of working area essentially needed.
Our Vertical Laminar Flow Cabinet range
|
Art No.
|
|||||
|
Working Width
|
830 mm (3 ft)
|
1205 mm(4 ft)
|
1490 mm (5 ft)
|
1790 mm (6 ft)
|
|
|
Dimensions
|
Inner
|
830x526x585
|
1205x526x585
|
1490x526x585
|
1790x526x585
|
|
W x D x H mm
|
Outer
|
900x792x1990
|
1275x792x1990
|
1560x792x1990
|
1860x792x1990
|
|
HEAP Filter
|
|
0.3 um particle removal 99.993 % ~ 99.995 %
|
|||
|
ULPA Filter
|
Option
|
0.12 um particle removal 99.999 %
|
|||
|
Air Circulation
|
Vertical Laminar Flow
|
||||
|
Controller
|
Display
|
Back Light Digital LCD
|
|||
|
|
Speed Control
|
9 Step Air Velocity Control from 0.3 m/sec. ~ 0.6 m/sec.
|
|||
|
|
Control
|
FL Lamp, UV Lamp, Blower ON/OFF, UV Timer,
|
|||
|
|
|
Total Using Timer, Filter Replace
|
|||
|
Working Lamp
|
FL 20 W x 2 ea
|
FL 30 W x 2 ea
|
FL 30 W x 2 ea
|
FL 36 W x 2 ea
|
|
|
Germicidal UV Lamp
|
UV 20 W x 1 ea
|
UV 30 W x 1 ea
|
UV 30 W x 1 ea
|
UV 40 W x 1 ea
|
|
|
Utility
|

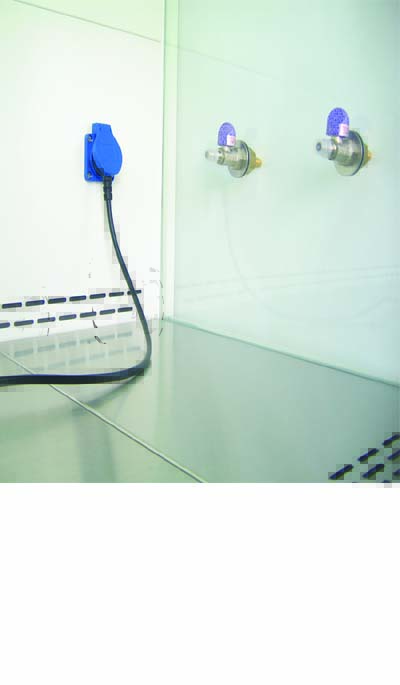

2 x Power Consent, 1 x Gas Cock, 1 x Air Cock
|
||||
|
Electric Requirement
|
220VAC 50/60Hz 1P
|
||||
|
Power Rating
|
0.9 Amp
|
1.6 Amp
|
1.6 Amp
|
1.7 Amp
|
|
|
Power Plug
|
CEE 7/7 Schuko or BS-1363
|
||||
