Forced Convection Oven

JSOF-Series Forced Convection Ovens utilize a motorized fan to force air circulates across heating element to supply hot air into the chamber. The fan allows more consistent temperature distribution of the chamber for applications in which good temperature uniformity or faster heat up and short drying time are needed.

Models

Art No.		JSOF-050	JSOF-100	JSOF-150	JSOF-250
Chamber Volume		48 L	100 L	151 L	252 L
Dimensions	Inner	400 x 300 x 400	500 x 400 x 500	560 x 450 x 600	600 x 600 x 700
W x D x H mm	Outer	560 x 605 x 710	660 x 705 x 810	720 x 755 x 910	760 x 905 x 1010
	Window	W150 x H290	W150 x H360	W150 x H410	W150 x H460
Temperature Range		ambient +10°C to 250°C
Accuracy at 120°C		± 0.2°C	± 0.3°C	± 0.3°C	± 0.3°C
Uniformity at 120°C		±1.0°C	±1.3°C	±1.5°C	±1.8°C
Heat up time to 120°C		10 min.
No. of Shelves/Max. No.		2 / 12	2 / 16	2 / 20	3 / 24
No. of Ventilation damper		1
Heater Capacity		1.0 kW	1.5 kW	1.7 kW	2.5 kW
Power Rating		4.7 Amp	7.0 Amp	7.9 Amp	11.5 Amp
Power Plug		CEE 7/7 Schuko European Standard or BS 1363 British Plug

Visit website Download Brouchure

Natural Convection Oven

JSON-Series Natural Convection Ovens heat up chamber with mild gravity air convection with heating element located under the chamber. Ideal for general and conventional laboratory drying purpose.

Models

Art No.		JSON-050	JSON-100	JSON-150	JSON-250
Chamber Volume		48 L	100 L	151 L	252 L
Dimensions	Inner	400 x 300 x 400	500 x 400 x 500	560 x 450 x 600	600 x 600 x 700
W x D x H mm	Outer	560 x 525 x 710	660 x 625 x 810	720 x 675 x 910	760 x 825 x 1010
	Window	W150 x H290	W150 x H360	W150 x H410	W150 x H460
Temperature Range		ambient +10°C to 250°C
Accuracy at 120°C		± 0.3°C	± 0.3°C	± 0.5°C	± 0.5°C
Uniformity at 120°C		± 2.0°C	± 3.0°C	± 3.0°C	± 4.0°C
Heat up time to 120°C		10 min.	10 min.	15 min.	20 min.
No. of Shelves / Max. No.		2 / 12	2 / 14	2 / 16	3 / 24
No. of Ventilation damper		1	2	2	2
Heater Capacity		1.2 kW	1.5 kW	1.7 kW	2.5 kW
Power Rating		5.5 Amp	6.8 Amp	7.7 Amp	11.3 Amp
Power Plug		CEE 7/7 Schuko European Standard or BS 1363 British Plug

Visit website Download Brouchure

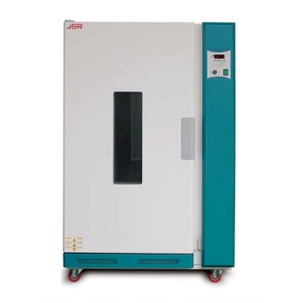

Upright Convection Oven

Upright Forced Convection Oven provides a big volume of chamber for large scale laboratory or industrial purpose. Nevertheless its large volume, dual heating system on upper and lower compartment with two separate heating elements and blowers provide better air circulation throughout the chamber to achieve excellent temperature uniformity and faster heat up time.

Models

Art No.		JSOF-250T	JSOF-400T	JSOF-700T
Chamber Volume		250 L	372 L	655 L
Dimensions	Inner	500 x 500 x 1000	610 x 610 x 1000	710 x 710 x 1300
W x D x H mm	Outer	895 x 675 x 1360	1050 x 785 x 1360	1105 x 885 x 1660
	Window	W150 x H460	W150 x H460	W150 x H615
Temperature Range		ambient +10°C to 250°C
Accuracy at 120°C		± 0.3°C	± 0.3°C	± 0.3°C
Uniformity at 120°C		± 1.5°C	± 2.0°C	± 3.0°C
Heat up time to 120°C		10 min.	15 min.	15 min.
No. of Shelves / Max. No.		3 / 36	4 / 36	6 / 48
No. of Ventilation damper		1
Heater Capacity		2 x 1.5 kW	2 x 1.7 kW	2 x 2.5 kW
Power Rating		13.8 Amp	15.6 Amp	22.9 Amp
Power Plug		CEE 7/7 Schuko	30 AMP	30 AMP

Visit website Download Brouchure

Compact Oven

Compact Oven is a common and universal instrument to be used to drying, heating and sterilizing objects by heating air up to 250°C with gravity or forced convection system

Models

Art No.		JSOF-030S	JSOF-050S	JSON-030S	JSON-050S
Hot Air Circulation		Forced Convection		Gravity Convection
Chamber Volume		33 L	48 L	33 L	48 L
Dimensions	Inner	350 x 270 x 350	400 x 300 x 400	350 x 270 x 350	400 x 300 x 400
W x D x H mm	Outer	510 x 570 x 660	560 x 585 x 710	510 x 490 x 660	560 x 505 x 710
Temperature Range		ambient +10°C to 250°C
Accuracy at 180°C		± 0.2°C	± 0.2°C	± 0.3°C	± 0.3°C
Uniformity at 180°C		± 1.0°C	± 1.0°C	± 2.0°C	± 2.0°C
Heat up time to 180°C		15 min.
No. of Shelves / Max. No.		2 / 12	2 / 12	2 / 10	3 / 12
No. of Ventilation damper		1
Heater Capacity		800 W	1.0 kW	800 W	1.2 kW
Power Rating		3.8 Amp	4.7 Amp	3.8 Amp	5.5 Amp
Power Plug		CEE 7/7 Schuko European Standard or BS 1363 British Plug

Visit website Download Brouchure

Vacuum Oven

Vacuum Drying Oven is suitable for drying out liquids or solvents contained in a samples or materials in vacuum environment to achieve low heat of vaporization or sublimation point. Ideal for Vacuum Distillation, Vacuum Sublimation or Vacuum Drying application of material science or electronic parts and assemblies. Also suitable for drying out fine powders in vacuum environment without air convection to prevent diffusion of such samples. Drying, curing, de-gassing, aging, removing moisture or solvent from fine powder or solid material, accelerating drying time, drying temperature sensitive material, drying in anaerobic condition, remove solvent from DNA, RNA or protein, drying unidentified material characteristic.

Models

Art No.		JSVO-30T	JSVO-60T
Chamber Volume		27 L	64 L
Dimensions	Inner	300 x 300 x 300	400 x 400 x 400
W x D x H mm	Outer	665 x 470 x 535	765 x 575 x 635
Glass Window		W265 x H285	W350 x H350
		15 mm thick Tempered Safety Glass
Temperature Range		ambient +10°C to 250°C
Accuracy at 120°C		± 0.2°C
Uniformity at 120°C		± 3.0°C
Maximum Vacuum		760 mmHg
Fitting		Vacuum/Vent Ø 11 mm Hose barb
Valves		Vacuum/Lock : 2-Way Valve Vent : Adjustable Needle Valve
No. of Shelves		2
Heater Capacity		2 x 1.0 kW	4 x 700 W
Power Rating		9.2 Amp	12.9 Amp
Power Plug		CEE 7/7 Schuko European Standard or BS 1363 British Plug

Visit website Download Brouchure

350°C Hi-Temp Oven

High-Temp. Forced Convection Ovens provides higher temperature up to 350°C than conventional ovens for special application for material research or testing laboratory. Motorized fan to force air circulation across heating elements and circulates into the chamber. The fan allows more consistent distribution of air and optional inert gas (Nitrogen Gas) purge system allows control oxidation of samples at high temperature treatment

Models

Art No.		JSOF-030H	JSOF-100H	JSOF-150H
Chamber Volume		27 L	96 L	150 L
Dimensions	Inner	300 x 300 x 300	400 x 400 x 600	500 x 500 x 600
W x D x H mm	Outer	745 x 460 x 580	845 x 560 x 880	945 x 660 x 880
Temperature Range		ambient +10°C to 350°C
Accuracy at 120°C		± 0.2°C	± 0.3°C	± 0.3°C
Uniformity at 120°C		± 1.0°C	± 1.5°C	± 1.5°C
Heat up time to 120°C		8 min.	10 min.	10 min.
No. of Shelves / Max. No.		2 / 14	2 / 20	2 / 20
No. of Ventilation damper		1
Heater Capacity		2.0 kW	2.5 kW	3.0 kW
Power Rating		9.3 Amp	11.5 Amp	13.8 Amp
Power Plug		CEE 7/7 Schuko or BS 1363 British Plug		30 AMP

Visit website Download Brouchure

HEPA Filter Clean Air Oven

Clean Air Oven is mechanical convection oven equipped with HEPA Filter Class H14 in laminar air path to remove particles up to 99.995% to keep oven chamber as clean room condition. Designed for applications drying or curing dust sensitive materials such as electronic components or medical parts, semi-conductor chip cleaning, display panel and wafer baking which needs particle free environment during heat treatment.

Models

Art No.		JSCO-150T	JSCO-300T	JSCO-1200T
Chamber Volume		168 L	336 L	1200 L
Dimensions	Inner	600 x 560 x 500	600 x 560 x 1000	1000 x 1000 x 1200
W x D x H mm	Outer	845 x 1100 x 1240	845 x 1100 x 1740	1245 x 1540 x 1940
	Clearance	845 x 1110 x 1250	845 x 1110 x 1750	1245 x 1550 x 1950
Temperature Range		ambient +10°C to 250°C
Accuracy at 120°C		±0.3°C	±0.3°C	±0.5°C
Uniformity at 120°C		±5.0°C	±5.0°C	±8.0°C
HEPA Filter		H14 (ISO Class 5) HI-TEMP HEPA Filter Efficiency 99.995%>0.3um particles
No. of Shelves / Max. No.		2 / 14	3 / 36	4 / 36
No. of Ventilation damper		1
Heater Capacity		2 x 1.0 kW	2 x 2.0 kW	3 x 2.5 kW
Electrical Requirement		220VAC 50/60Hz 1P	220VAC 50/60Hz 1P	220VAC 1P or 380VAC 3P 4W
Power Rating		11.0 Amp	20.2 Amp	-
Power Plug		CEE 7/7 Schuko	30 AMP

Visit website Download Brouchure

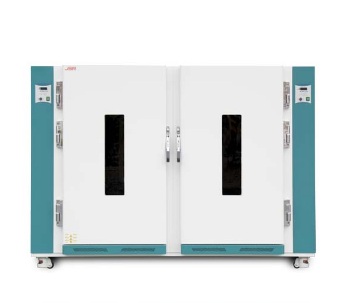

Dual Chamber Industrial Oven

Dual Chamber Industrial Drying Oven is ideal for a laboratory and industrial application needs a large number of sample treatment such as sample drying, heat treatment or thermal testing. Independent temperature controller for each chamber to set and run at different temperature according to requirement. Nevertheless it's large volume, dual heating system on upper and lower compartment with two separate heating elements and blowers provide better air circulation throughout the chamber to achieve excellent temperature uniformity and faster heat up time.

Models

Art No.		JSOF-400W	JSOF-600W
Chamber Volume		2 Chamber x 432 L	2 Chamber x 612 L
Dimensions	Inner	600 x 600 x 1200 / chamber	600 x 850 x 1200 / chamber
W x D x H mm	Outer	2165 x 775 x 1545	2165 x 1025 x 1545
	Clearance	2165 x 775 x 1695 (incl. Damper)	2165 x 10025 x 1695 (incl. Damper)
	Window	W150 x H615 mm
Temperature Range		ambient +10°C to 250°C
Accuracy at 120°C		± 0.3°C	± 0.3°C
Uniformity at 120°C		± 2.0°C	± 3.0°C
Heat up time to 120°C		15 min.
No. of Shelves / Max. No.		4 / 22 per chamber	4 / 22 per chamber
No. of Ventilation damper		1 per chamber
Heater Capacity		4 x 1.5 kW	4 x 2.0 kW
Power Rating		2 x 13.9 Amp per chamber	2 x 18.5 Amp per chamber
Power Plug		2 x CEE 7/7 Schuko	2 x 30 AMP

Visit website Download Brouchure

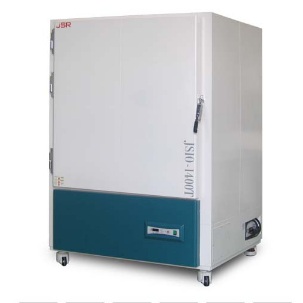

Heavy Duty Industrial Oven

Durable and Rugged Large Capacity Industrial Oven for industrial production line such as drying printed circuit panel, glass panel and stability test of electronic parts and components. Horizontal air flow with adjustable damper system on each shelf level allow to maintain optimum air circulation throughout the chamber which provides excellent temperature uniformity and operational condition

Models

Art No.		JSIO-400T	JSIO-960T	JSIO-1400T
Chamber Volume		410 L	960 L	1386 L
Dimensions	Inner	650 x 600 x 1050	1000 x 800 x 1200	1100 x 1050 x 1200
W x D x H mm	Outer	935 x 835 x 1810	1285 x 1035 x 1960	1385 x 1235 x 1960
	Clearance	935 x 845 x 1820	1285 x 1045 x 1970	1385 x 1245 x 1970
Temperature Range		ambient +10°C to 250°C
Accuracy at 120°C		± 0.3°C	± 0.5°C	± 0.5°C
Uniformity at 120°C		± 5.0°C	± 6.0°C	± 8.0°C
Heat up time to 120^oC		20 min.	25 min.	25 min.
No. of Shelves / Max. No.		3 / 8	3 / 8	3 / 8
No. of Ventilation damper		1
Electrical Requirement		220 VAC 50/60Hz or 380VAC 50/60Hz 3P 4W
Heater Capacity		4.5 kW	7.5 kW	10.5 kW
Power Rating		22.0 Amp	21.0 Amp	30.0 Amp
Power Plug		220 VAC 30 AMP	380 VAC 4-Wire	380 VAC 4-Wire

Visit website Download Brouchure
